2 Hour Fire Rated Walls

In the realm of fire safety, there's no room for compromise. When protecting lives and property, having the right safeguards is paramount. It's important to choose the correctly rated door for your wall. A 2 hour fire-rated wall is designed to withstand the ravages of fire for a significant amount of time, giving occupants precious moments to escape and firefighters the time they need to contain the blaze. Experts recommend a 90 minute fire-rated door for a 2 hour fire-rated wall.

Get Instant Pricing & Ship Time!
  • Complete Door, Frame, and Hardware Packages
  • Super Fast Production. Stock Items Ship in 3-5 Business Days!
Instant Pricing
Build a Quote Today
2-hour fire-rated door

All Industry Standard Sizes

All commercial doors come at a thickness of 1-3/4”. We offer the industry’s leading standard widths and heights for your openings. We provide cut down and restyling for custom sized doors to meet any custom opening. Be sure to review our width and height sizing chart before building your quote. If you have any further questions please contact us.

Specifications

Door Thickness

1-3/4" Standard

Core

Mineral core and particle board available

Sizes

Standard Widths up to 4'0", Height up to 8'0" (Custom Sizes Available)

Undercut

3/4" Standard

Finish

Unfinished and stained finishes available

Standard Preps

161 (cylindrical lock), 86 Edge (mortise lock), Deadbolt, RPD (blank edge, panic reinforced)

Fire-Rating

20 minute, 45 minute, 60 minute, 90 minute Fire rating

ANSI Standards

Meets or exceeds requirements of ANSI A208.1 and CS236-66

Optional Preps

Exit Device Trim, Deadbolts, Lite and Louver Cutouts, Continuous Hinge Application (Undersized Width)

Stains Available

Unfinished, Clear Pre-finished, Mahogany, Traditional Cherry, Golden Hickory, Dark Walnut, Dark Oak, and Autumn Oak

Handing

Non-Handed Design; Reversible Hinge Plates

Mfg. Hinge/Lock Locations

Steelcraft, Mesker, Ceco, Curries, Republic, Baron, DKS, Pioneer, Deansteel, Custom Locations

Most Popular Door Sizes

Call Size
Nominal Width
Nominal Height
3068
3’0″ (36 inch)
6’8″ (80 inch)
3070
3’0″ (36 inch)
7’0″ (84 inch)

Door Sizes |6’8″ Height

Call Size
Nominal Width
Nominal Height
2068
2’0″ (24 inch)
6’8″ (80 inch)
2468
2’4″ (28 inch)
6’8″ (80 inch)
2668
2’6″ (30 inch)
6’8″ (80 inch)
2868
2’8″ (32 inch)
6’8″ (80 inch)
21068
2’10” (34 inch)
6’8″ (80 inch)
3468
3’4″ (40 inch)
6’8″ (80 inch)
3668
3’6″ (42 inch)
6’8″ (80 inch)
3868
3’8″ (44 inch)
6’8″ (80 inch)
4068
4’0″ (48 inch)
6’8″ (80 inch)

Door Sizes |7’0″ Height

Call Size
Nominal Width
Nominal Height
2070
2’0″ (24 inch)
7’0″ (84 inch)
2470
2’4″ (28 inch)
7’0″ (84 inch)
2670
2’6″ (30 inch)
7’0″ (84 inch)
2870
2’8″ (32 inch)
7’0″ (84 inch)
21070
2’10” (34 inch)
7’0″ (84 inch)
3470
3’4″ (40 inch)
7’0″ (84 inch)
3670
3’6″ (42 inch)
7’0″ (84 inch)
3870
3’8″ (44 inch)
7’0″ (84 inch)
4070
4’0″ (48 inch)
7’0″ (84 inch)

Door Sizes |8’0″ Height

Call Size
Nominal Width
Nominal Height
2080
2’0″ (24 inch)
8’0″ (96 inch)
2480
2’4″ (28 inch)
8’0″ (96 inch)
2680
2’6″ (30 inch)
8’0″ (96 inch)
2880
2’8″ (32 inch)
8’0″ (96 inch)
21080
2’10” (34 inch)
8’0″ (96 inch)
3480
3’4″ (40 inch)
8’0″ (96 inch)
3680
3’6″ (42 inch)
8’0″ (96 inch)
3880
3’8″ (44 inch)
8’0″ (96 inch)
4080
4’0″ (48 inch)
8’0″ (96 inch)
Actual width is 1/4" under nominal door size, to allow for 1/8" clearance on hinge and strike sides.
Actual height is 7/8" under nominal door size. Standard undercut is 3/4" + 1/8" clearance at top = 7/8"
All doors = 1-3/4″ thickness
*Custom Door Widths and Heights upon Request.

Fire Rating Options

Our commercial grade solid core wood doors can withstand the spread of fires to the architectural grade standard fire rating of 90 minutes. We carry fire rated doors with custom options including stain finishes, sizing, and non-existing hardware. The most common application for a fire rated door includes commercial openings needed to meet code requirements or any opening that need protection from a potential spreading fire hazard.
non fire rated
0
20 MIN FIRE RATed
20
45 min fire rated
45
60 min fire rated
60
90 min fire rated
90

The Life-Saving Importance of 90 Minute Fire-Rated Doors

A 90 minute fire-rated door is precisely what its name suggests: a door that can withstand the intense heat and flames of a fire for up to 90 minutes, such as our fire-rated metal double doors. This rating is a testament to the door's ability to act as a barrier, preventing the fire from spreading to adjacent areas. It's crucial to note that these doors are rigorously tested and certified by relevant authorities to ensure they meet stringent fire safety standards.

Generally, a 2-hour fire rated wall will require a 90 minute fire rated door, according to the National Fire Protection Association. We offer various fire-ratings, from 20 minutes to 3 hours.

Fire Door
Construction & Features

Fire doors are not your ordinary doors; they are engineered with fire-resistant materials that can withstand extreme temperatures. They typically consist of multiple layers of fire-resistant core material enclosed within heavy-duty steel or other fire-resistant materials. This construction provides exceptional heat insulation and integrity, preventing smoke and fire from spreading.

Moreover, fire rated doors often come equipped with fire-rated hardware, including hinges, locks, and latches, designed to withstand the high temperatures of a fire. This ensures the entire door assembly maintains its integrity during a fire event.

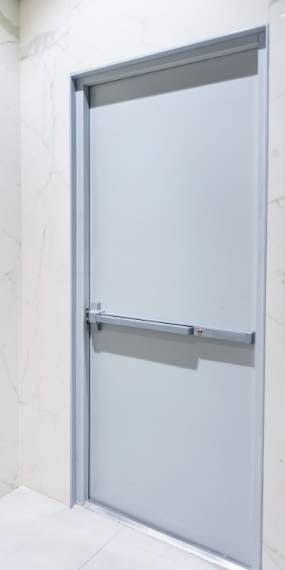

2 Hour Fire Rated Door

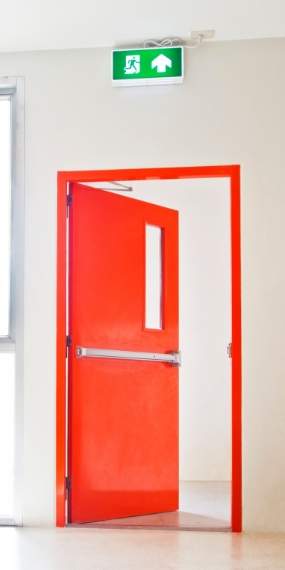

2 Hour Rated Door

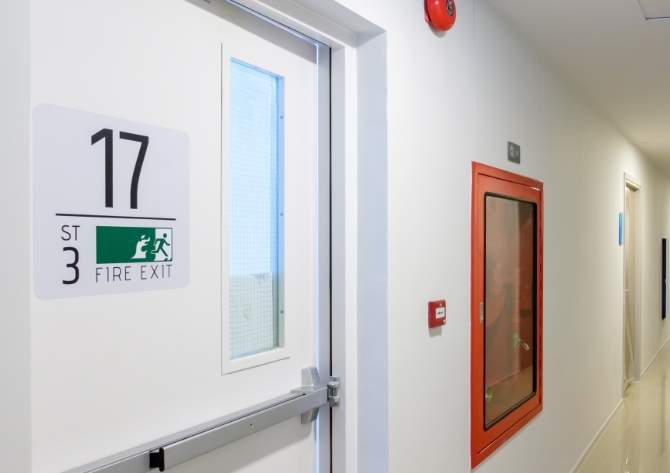

2 Hour Fire Door

Applications of
Fire-Rated Doors

The applications of fire-rated doors are diverse and critical for fire safety. Here are some common applications of these doors.

Commercial Buildings: fire doors are common in commercial structures, including office buildings, shopping centers, and industrial facilities, where many people gather regularly.
Multi-Family Residences: In apartment complexes and condominiums, fire doors are often used to compartmentalize fire and protect residents.
Hospitals and Healthcare Facilities: Protecting patients and medical equipment is paramount in healthcare settings, making fire doors crucial.
Schools and Educational Institutions: Ensuring the safety of students and faculty in the event of a fire is a top priority, making fire doors essential in educational facilities.
Government Buildings: Government structures, such as courthouses and municipal buildings, rely on fire doors to safeguard sensitive information and ensure the safety of employees and visitors.

Get a Quote On Fire-Rated Doors

Fire-rated doors are not just doors but a lifeline in fire emergencies. Their robust construction, certified fire resistance, and widespread use in various critical settings make them integral to fire safety protocols. When it comes to fire protection, investing in the right doors can make all the difference in saving lives and minimizing property damage.

CDF Distributors offers a wide selection of high-grade, industrial doors. We have the perfect doors for your establishment, from commercial steel doors and commercial door hardware to hollow metal doors and storefront doors. Get fire doors today to protect your property and its people.

Instant Pricing
Get a Quote

Frequently Asked Questions
About Fire-Rated Doors

Yes, many manufacturers offer fire-rated doors in a range of finishes, styles, and hardware options, allowing customization to match the overall design and aesthetics of the building while maintaining the required fire rating.
Regular inspections and maintenance are essential to ensure that fire-rated doors function correctly and may include checking hardware and seals to ensure the door operates smoothly. Read about how to maintain and repair commercial doors here for more information.
While fire-rated doors are commonly used in commercial and institutional settings, they can also be used in residential applications, especially in multi-family housing complexes where fire safety is a concern. If your primary focus is fire safety, we recommend choosing hollow metal doors for strength and fire resistance.
Building codes and regulations often dictate the need for fire-rated doors based on building occupancy, size, and other factors. Consult with a fire safety professional or building code expert on the importance of commercial door security measures and assess your requirements.
It is often possible to retrofit existing structures with fire-rated doors to enhance fire safety. However, a professional should assess the feasibility and requirements for retrofitting to ensure compliance with local building codes and regulations.
