ADA COMPLIANT Barrier Free Thresholds Meet the Requirements of ADA Standards for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
POSITIVE PRESSURE CERTIFIED by UL to ANSI/UL10C Complies with IBC, NFPA 80 and NFPA 252 for Application to Hollow Metal Fire Doors Rated up to 3 Hrs., and Wood Fire Doors Rated up to 90 Minutes.
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B Complies with NFPA 80 and NFPA 252 for Application to Hollow Metal Fire Doors Rated up to 3 Hrs., and Wood Fire Doors Rated up to 90 Minutes.
AIR FILTRATION TESTED ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

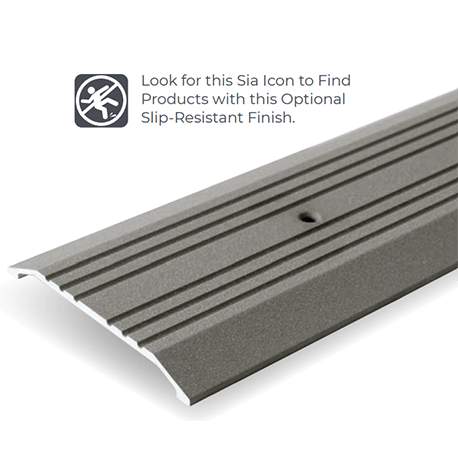

SLIP-RESISTANT 'SIA’ Textured Surface is Available on all Thresholds. Our Process Embeds and Fuses Bits of Hot Nickel and Titanium into the Surface of the Threshold. This Technology Originally Developed for use on Aircraft Carrier Decks is Very Skid-Resistant and will not Wear Off
ANSI/BHMA CERTIFIED Certified Thresholds Comply with American National Standard for Thresholds ANSI/BHMA A156.21 and are Listed in the BHMA Certified Products Directory.

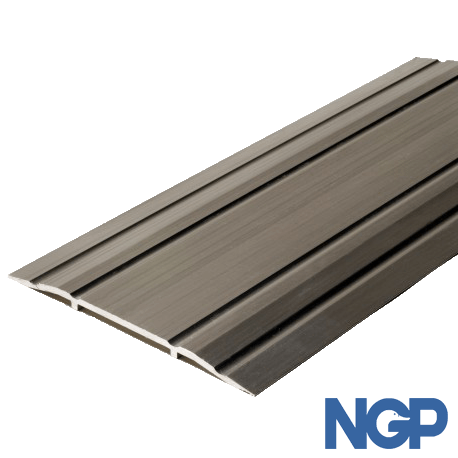

Thresholds are Aluminum Alloy 6063, T5 temper, unless noted. Cover Plates 818, 814 and 828 are Aluminum Alloy 3003, H14 hardness. Cover Plate 838 is Aluminum Alloy 5052, H32 hardness.

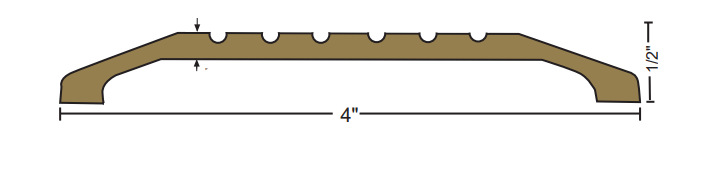

Architectural Bronze Thresholds are Alloy CDA 385 (Copper Alloy No. C38500), Architectural Bronze. Brass Cover Plate 818BR is Alloy CDA 260 (Copper Alloy No. C26000) cold formed Cartridge Brass.

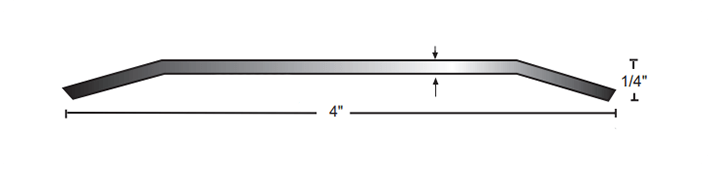

Stainless Steel Thresholds and Cover Plates are Type 304; known for its excellent corrosion resistance, high tensile strength and resistance to oxidation.
Finishes
Stainless Steel
Mill Finish Brushed (#4) Polished Slip Resistant
Architectural Bronze
Satin Finish Dark Bronze Oil Rubbed Polished Slip Resistant
